Degradation of EDS Spatial Resolution due to Specimen Drift
- Practical Electron Microscopy and Database -
- An Online Book -
Microanalysis | EM Book                                                                                   https://www.globalsino.com/EM/



X-ray acquisition time must be short enough to ensure that spatial resolution is not degraded by specimen drift and contamination and to ensure that artifact is not generated by beam damage.

The count of X-ray acquisition can be increased mainly by:
         i) Increase of acquisition time. The acquisition time may be increased if we have good stability of specimen stage and drift-correction software is used.
         ii) Increase of solid angle of EDS detector.
         iii) Thicker TEM specimens or SEM specimens are used. However, there are some drawbacks if such specimens are used.

In analytical TEM analysis, specimen not only drifts in horizontal x- and y-directions but also in z-direction. In modern EELS mapping, the speciment drift in x- and y-directions can be corrected with user interface (UI) on software, e.g. Gatan DigitalMicrograph. Unfortunately, the drift in z-direction cannot be corrected during the measurement.

Furthermore, in analytical measurements, including EELS and EDS, convergent electron probe in STEM mode is used. Focus point of the beam does not move with time when the the specimen drifts up or down as shown in Figure 3125a. Therefore, the spatial resolution of such elemental mapping is degraded by specimen drift in the z-direction.

It is well-known that the spatial resolution of the measurements can be estimated by the diameter of the probe irradiation on the specimen. Assuming the specimen is infinitely thin, then the spatial resolution is given by:
          Spatial Resolution due to Specimen Drift -------------------------------- [3125]
          α -- The convergence semiangle,
          h -- The drift height (see Figure 3125a).

Spatial Resolution due to Specimen Drift

Figure 3125a. Spatial resolution affected by the specimen drift in the z-direction: (a) No drift (stays in focus), (b) Specimen drifts up, and (c) Specimen drifts down.

For instance, a = 0.015·2h when the convergence semiangle α is 15 mrad, which is used in many TEM systems. Figure 3125b shows that the drift does not have significant effect on spatial resolution in short time, while it significantly degrades spatial resolution in long time data acquisition, e.g. EDS and EELS mapping of a large area. Therefore, in practice, STEM imaging can be done immediately after the region of interest in the TEM specimen has been localized since the acquistion just takes few seconds normally; however, we need to wait for stabilizing the specimen before starting the experiment if elemental mapping of a large area is needed because it takes a long acquistion time. It is necessary to mention that, in practice, the focus still needs to be corrected even though the specimen is stabilized after a while, since it still drifts randomly.

Examples of drift effect on spatial resolution
Examples of drift effect on spatial resolution

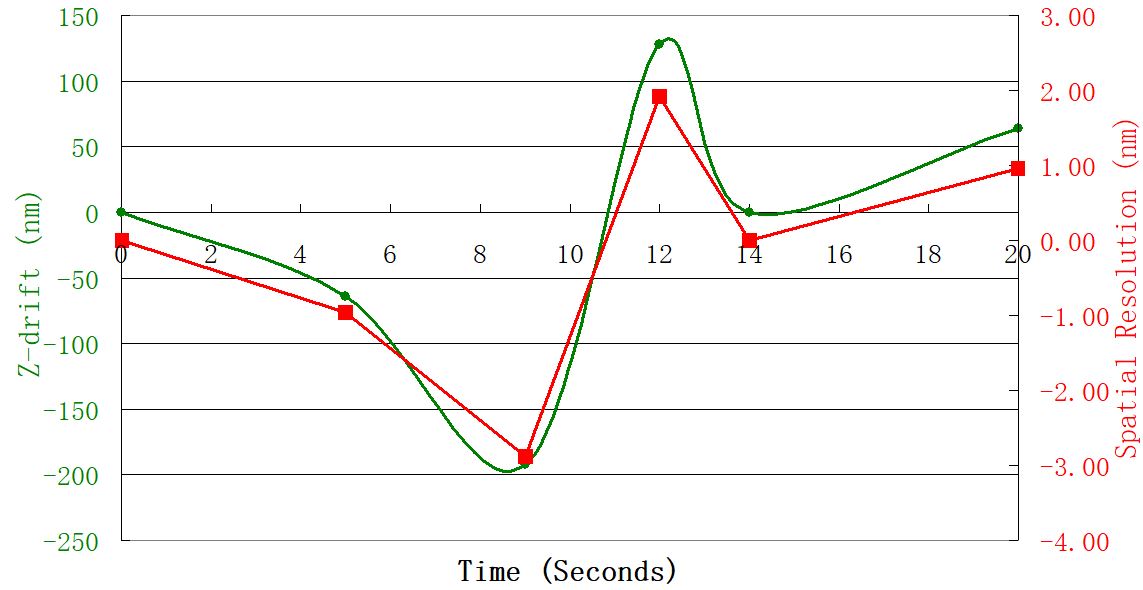

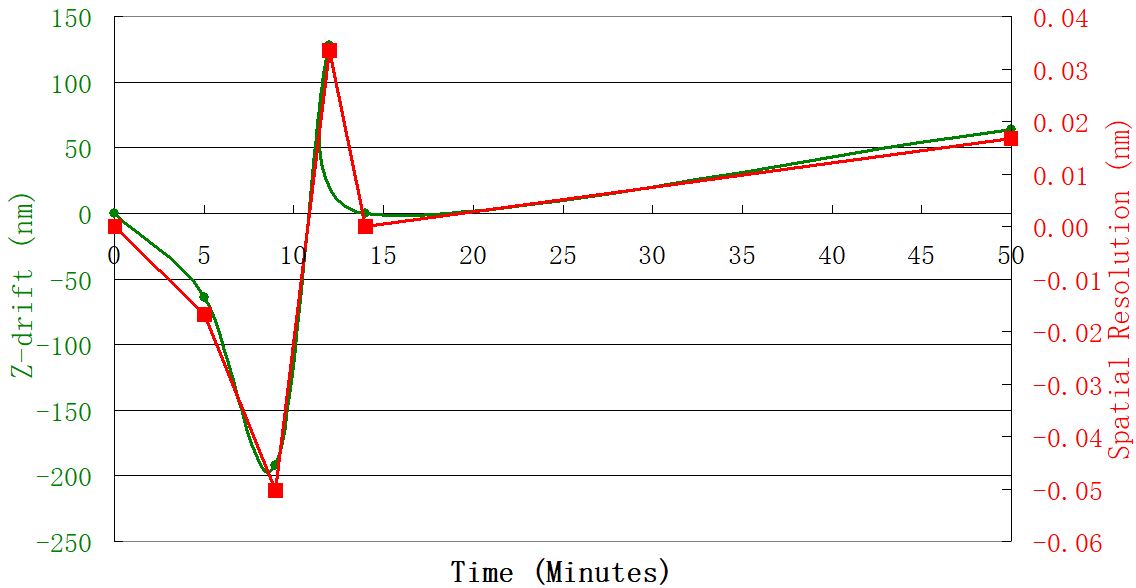

Figure 3125b. Examples of drift effect on spatial resolution: (a) with short data acquisitions and (b) with long data acquisitions.
