Examples of parameters of .locateCenterOnScreen: region = (320, 860, 1320, 1075), grayscale = True, confidence = 0.8.

======================================================

Pyautogui uses screencaps to find the location of stuff on the screen. he problem on macs with a retina display is that the screen output have double the number of pixels, to take advantage of the system’s greater pixel density for a crisper image.Therefore, when you take a screenshot, you get an image containing double the number of pixels than the same image from a non-retina Mac

locateCenterOnScreen can give wrong coordinatess because of the reasons below:
         i) MacBook Pro does not provide correct coordinatess, e.g. the actual screen resolution on MacBook is 2880 x 1800, but pyautogui size() returns 1920 x 1080.
         ii) "Transparency Effects" in "Themes and Related Settings => Colors" has been turned on Windows 10.
         iii) Some format of PNG, JPG and GIF does not work on some PC due to 'pixel-perfect' requirement.
         iv) pyautogui image recognition does not working properly on some images.

======================================================

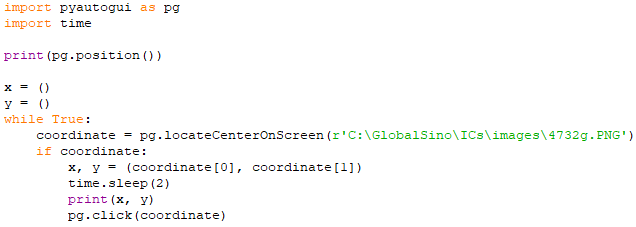

Click the first match continuously: code:
         Click the link on a webpage with a similar feature

======================================================

Click the link on a webpage with a similar feature: code:
         Click the link on a webpage with a similar feature
Template:
         Click the link on a webpage with a similar feature
Webpage for click:
         Click the link on a webpage with a similar feature

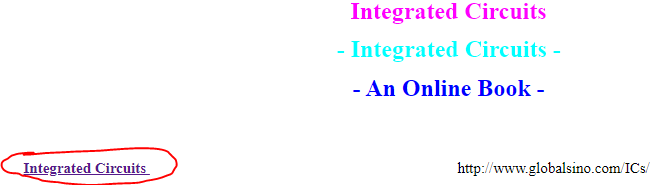

Output: opened webpage (only clicked the closest one in red):
         Click the link on a webpage with a similar feature
Printed output (only printed the closest one in red above):
         Click the link on a webpage with a similar feature

======================================================

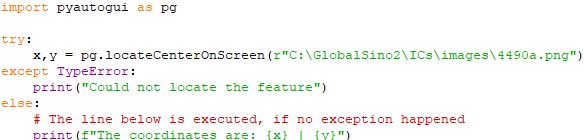

Exception for locateCenterOnScreen: code:
         Click the link on a webpage with a similar feature
Output:
         Click the link on a webpage with a similar feature

============================================

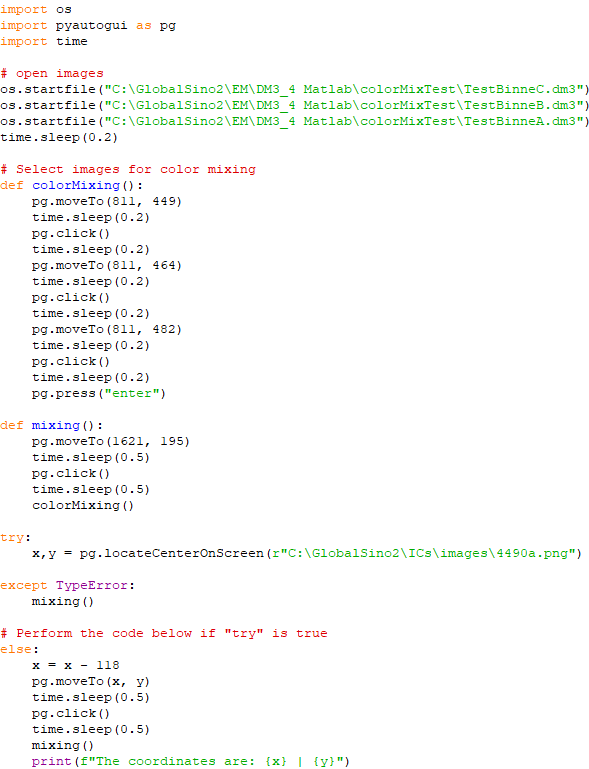

Load images and ColorMixing in DigitalMicrograph: code:
          Load images and ColorMixing in DigitalMicrograph

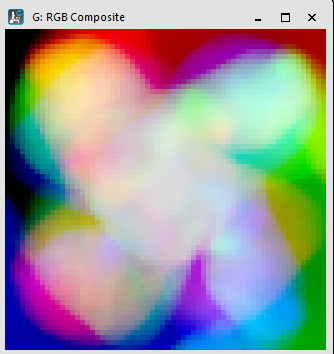

Output:
          Load images and ColorMixing in DigitalMicrograph
          Load images and ColorMixing in DigitalMicrograph
          Load images and ColorMixing in DigitalMicrograph

============================================

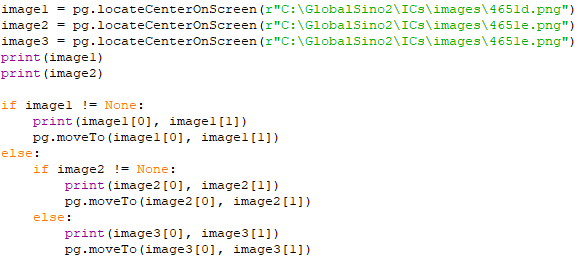

Locate center on screen by locateCenterOnScreen() with reference options: code:
          Load images and ColorMixing in DigitalMicrograph
4651d.png:
         Load images and ColorMixing in DigitalMicrograph

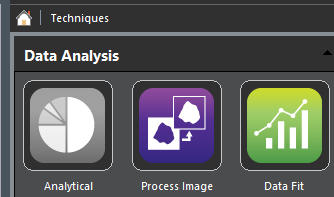

4651e.png:
         Load images and ColorMixing in DigitalMicrograph
4651g.png:
         Load images and ColorMixing in DigitalMicrograph

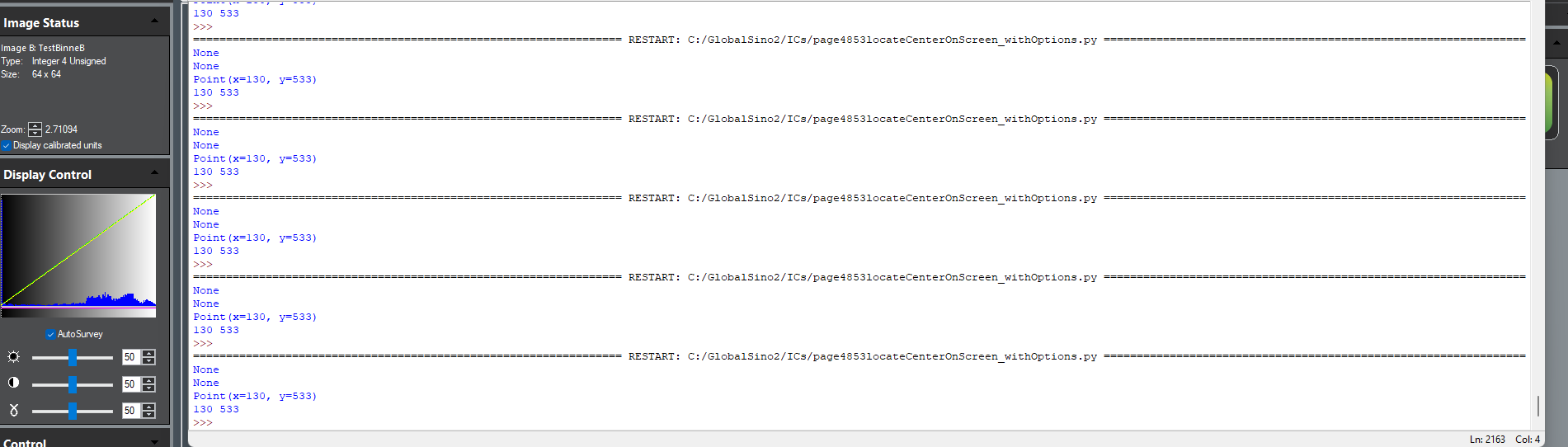

Output (image1 and image2 are blocked by the IDLE window, then it looked for image3):
         Load images and ColorMixing in DigitalMicrograph

============================================

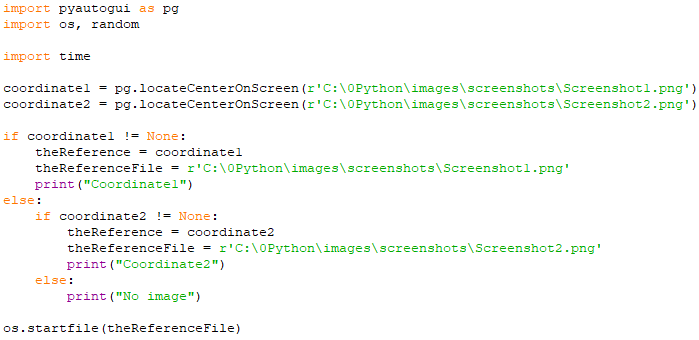

Reverse function of locateCenterOnScreen(): code:
          Load images and ColorMixing in DigitalMicrograph
Original image on screen :
         Load images and ColorMixing in DigitalMicrograph
Matched and opened image:
         Load images and ColorMixing in DigitalMicrograph



=================================================================================
