Register transfer level (RTL) code

Integrated Circuits and Materials http://www.globalsino.com/ICsAndMaterials/

=================================================================================

The register transfer level (RTL) code are commonly used to design the optimum logic circuits while maintaining high flexibility. The resulting RTL codes will finally be converted to the specific logic circuits (hardware) by using the logic synthesis tools like the design compiler. [1-3]

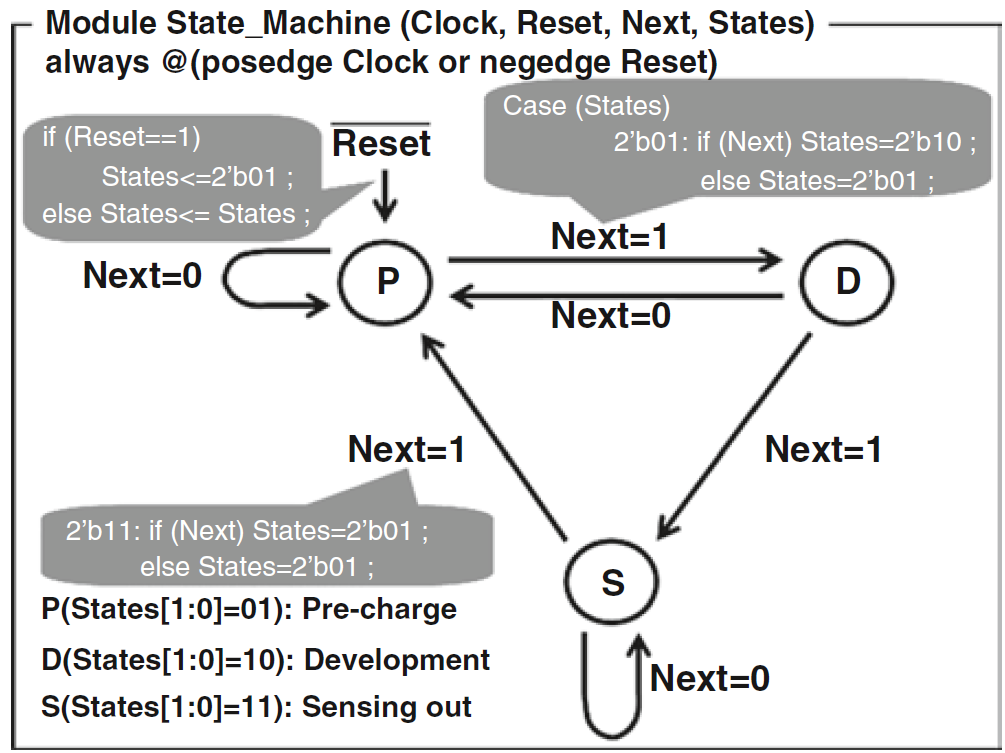

Example of the simple state machine and its flowchart. The register transfer level (RTL) codes in response to the flowchart are shown in together

Figure 4976. Example of the simple state machine and its flowchart. The register transfer level (RTL) codes in response to the flowchart are shown in together. [4]

[1] S. Brown, Z. Vranesic, Fundamentals of Digital Logic with Verilog Design (McGraw-Hill, New York, 2003).
[2] N.H.E. Weste, D. Harris, CMOS VLSI Design: A Circuits and Systems Perspective, 3rd edn. (Addison-Wesley, Boston, 2005).
[3] Design CompilerTM User Guide, Synopsys, Inc.
[4] Krzysztof (Kris) Iniewski, CMOS Processors and Memories, (2010).

=================================================================================
