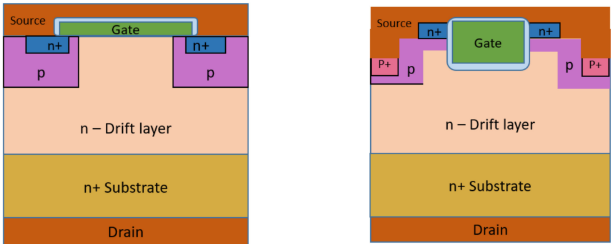

Figure 1236a shows two primary types of SiC MOSFETs based on their gate and drift structures: planar and trench MOSFETs. Planar MOSFETs, also known as DMOSFETs, have a lateral gate structure that allows for high-voltage operation. Trench MOSFETs, or UMOSFETs, incorporate a vertical gate structure within a U-shaped trench, which enhances the channel mobility by minimizing JFET resistance and reducing on-resistance.

(a)	(b)

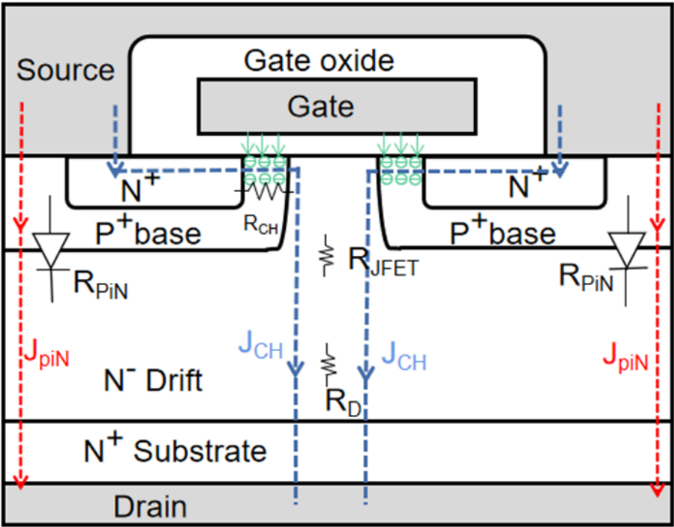

Figure 1236b shows the structure and its circuit equivalent diagram of a planar gate SiC MOSFET.

(a)	(b)

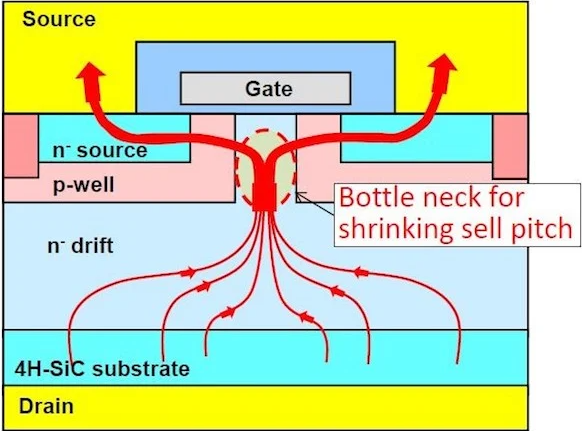

Figure 1236c shows an N-channel MOSFET. The structure involves an n-epi layer and an n+ substrate. The cross-section of SiC MOSFET in Figure 1236c (a) shows if the JFET (Junction Field-Effect Transistor) width becomes narrow, it can become a bottleneck and the ON-state resistance will increase. However, by optimizing the JFET doping, the ON-state resistance in the planar MOSFETs can be significantly reduced. Figure 1236c (b) shows the electron flow in an N-channel MOSFET.

(a)	(b)	(c)

The device's performance of planar gate SiC MOSFET is limited by low channel mobility, primarily due to scattering at the 4H-SiC/insulator interface, which significantly reduces interface mobility compared to the bulk. Additionally, parasitic junction FET resistance contributes to higher conduction losses under forward operation. [5] A 4H-SiC planar MOSFET with a blocking voltage of 2.3 kV has been proposed, [6] featuring a gate oxide thickness of 27 nm, which provides an adequate gate oxide electric field. This device, fabricated using a commercial foundry, shows an improvement in specific on-resistance (R_on,sp) and a high-frequency figure of merit (FOM) by 1.3 times with a 15 V gate bias. Despite these benefits, the device experiences gate voltage overshoot failure due to the thin gate oxide. Another 4H-SiC planar MOSFET, designed with multiple floating guard-rings for edge termination, achieves a blocking voltage of 2.4 kV and a specific on-resistance of approximately 42 mΩ·cm². [7] This device demonstrates a channel mobility of 22 cm²/V·s and a threshold voltage of around 8.5 V.
