| In a Scanning Electron Microscope (SEM), tolerances across various parameters such as geometric, materials, thermal, and electrical aspects, listed in Figure 0012, play a important role in achieving accurate imaging and analysis.

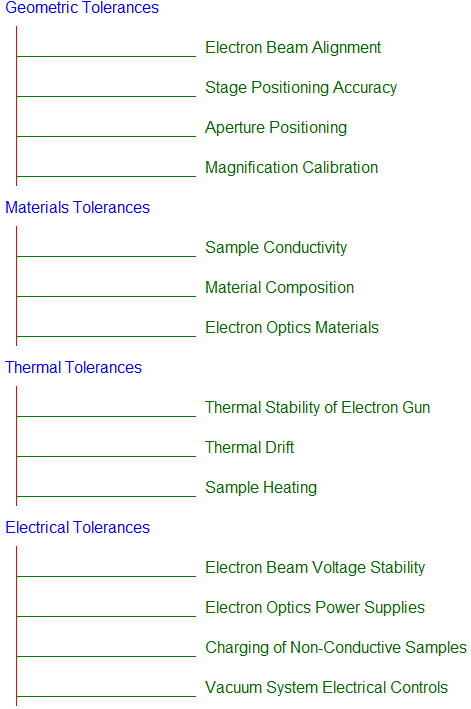

| Figure 0012. Tolerances across various parameters such as geometric, materials, thermal, and electrical aspects in SEM system. |
The details of the tolerances are below:
- Geometric Tolerances
- Electron Beam Alignment: The alignment of the electron gun and focusing lenses must be precise to ensure the electron beam is directed correctly toward the sample. Misalignments can lead to aberrations or inaccurate measurements.
- Stage Positioning Accuracy: SEM stages, which hold the sample, need to have high positional accuracy and stability, often down to the nanometer level. Slight misalignments or vibrations can degrade the resolution.
- Aperture Positioning: Apertures control the electron beam diameter, and their positioning must be highly precise to control the beam current and resolution effectively.
- Magnification Calibration: Geometric tolerances are vital in calibration to ensure the magnification provided by the SEM is accurate for measurements.
- Materials Tolerances
- Sample Conductivity: SEM samples must often be conductive or coated with conductive materials (like gold or carbon) to prevent charge buildup. Materials with inconsistent conductive properties can result in image distortions.
- Material Composition: Different materials in the electron column (e.g., lenses, apertures, detectors) must have specific properties such as low outgassing and high stability under electron bombardment. Incompatible materials could affect the vacuum level or introduce contamination.
- Electron Optics Materials: The materials used in the electron gun and electromagnetic lenses must have precise tolerances in terms of composition and uniformity to ensure stable electron emission and focusing.
- Thermal Tolerances
- Thermal Stability of Electron Gun: The electron gun (e.g., tungsten, LaB6) operates at high temperatures, and thermal expansion must be tightly controlled. Any changes in temperature could alter the beam emission properties.
- Thermal Drift: SEM systems are sensitive to temperature changes that can cause mechanical expansion or contraction of components, leading to thermal drift, which can affect beam alignment and focus. These tolerances are controlled through precise temperature management and active cooling systems.
- Sample Heating: High-energy electrons can locally heat the sample, which might cause deformation or other changes in sensitive samples. Materials with specific thermal tolerances are needed to handle this heating effect.
- Electrical Tolerances
- Electron Beam Voltage Stability: The stability of the accelerating voltage is critical. Small variations in voltage can affect the energy of the electron beam, influencing image resolution and analytical results (e.g., in X-ray spectroscopy). Voltage fluctuations must be minimized, typically within a few tenths of a percent.
- Electron Optics Power Supplies: The power supplies for electromagnetic lenses must deliver extremely stable currents. Fluctuations in lens currents can defocus the electron beam and lead to aberrations.
- Vacuum System Electrical Controls: Electrical tolerances in the vacuum system pumps and valves are critical to maintaining the ultra-high vacuum required in the SEM chamber. Even minor electrical fluctuations can cause vacuum instability, which impacts imaging quality.
- Charging of Non-Conductive Samples: Non-conductive samples can accumulate charge, leading to image distortions. Control over the electron dose and the use of conductive coatings are needed to manage charging effects.
Each of these tolerances is critical for the SEM's performance, and maintaining them ensures high resolution, accurate analysis, and reliable results across different materials and environmental conditions.
|
